Park Avenue Condominium Association

Location : Lombard, Illinois

Property Type: Condominium Association

Building Type: 7-story Masonry Building

Size Project: One Parking Deck

WEC Services:

  • Initial parking deck evaluation
  • Specification/Drawings for Repairs
  • Bidding and Bid Review Recommendations
  • Construction Administration and Monitoring

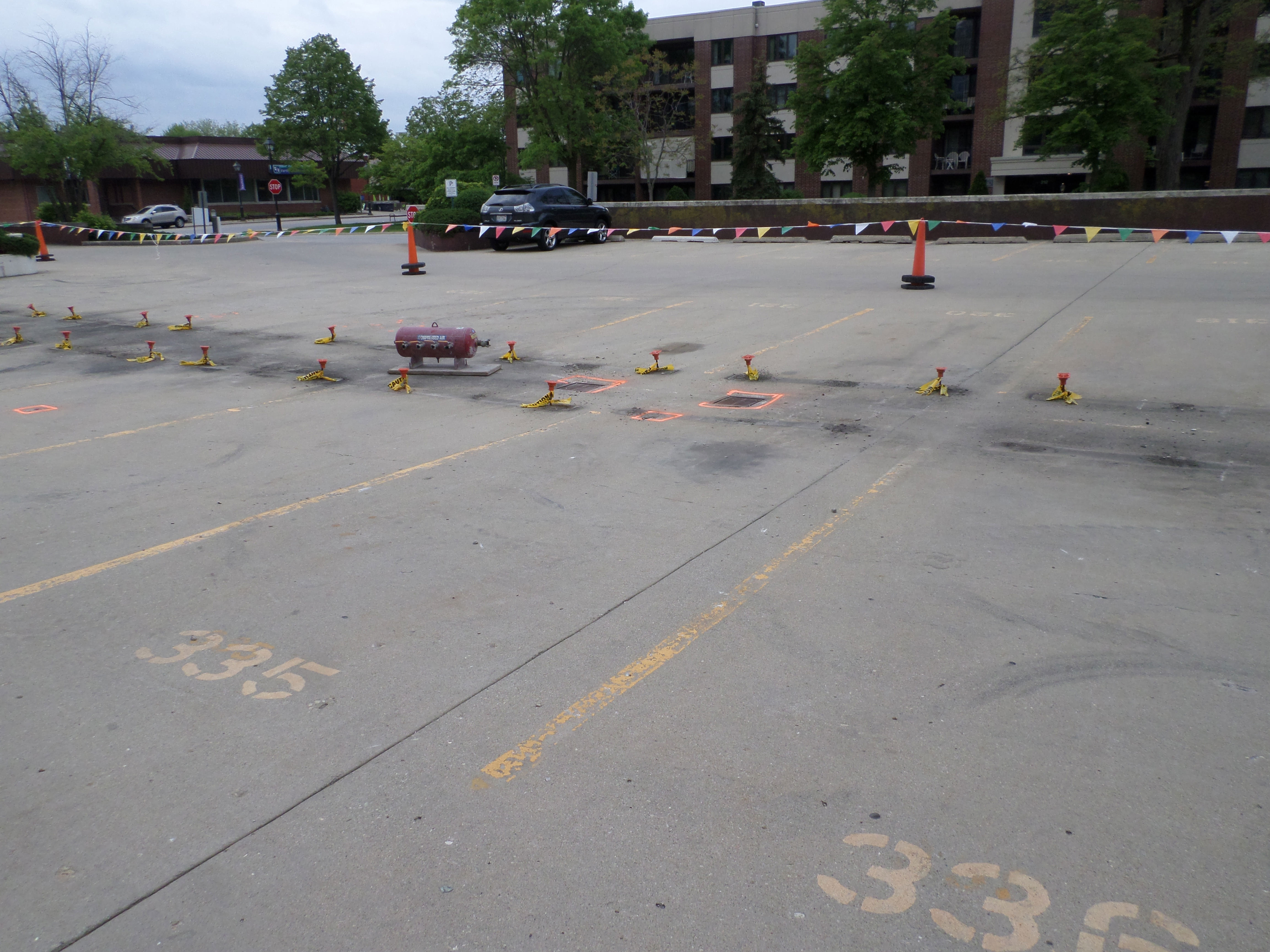

Water was leaking from the existing elevated parking deck into the existing lower level parking garage. The initial evaluation indicated that the water leakage was primarily coming from the planters and an expansion joint on the parking deck.

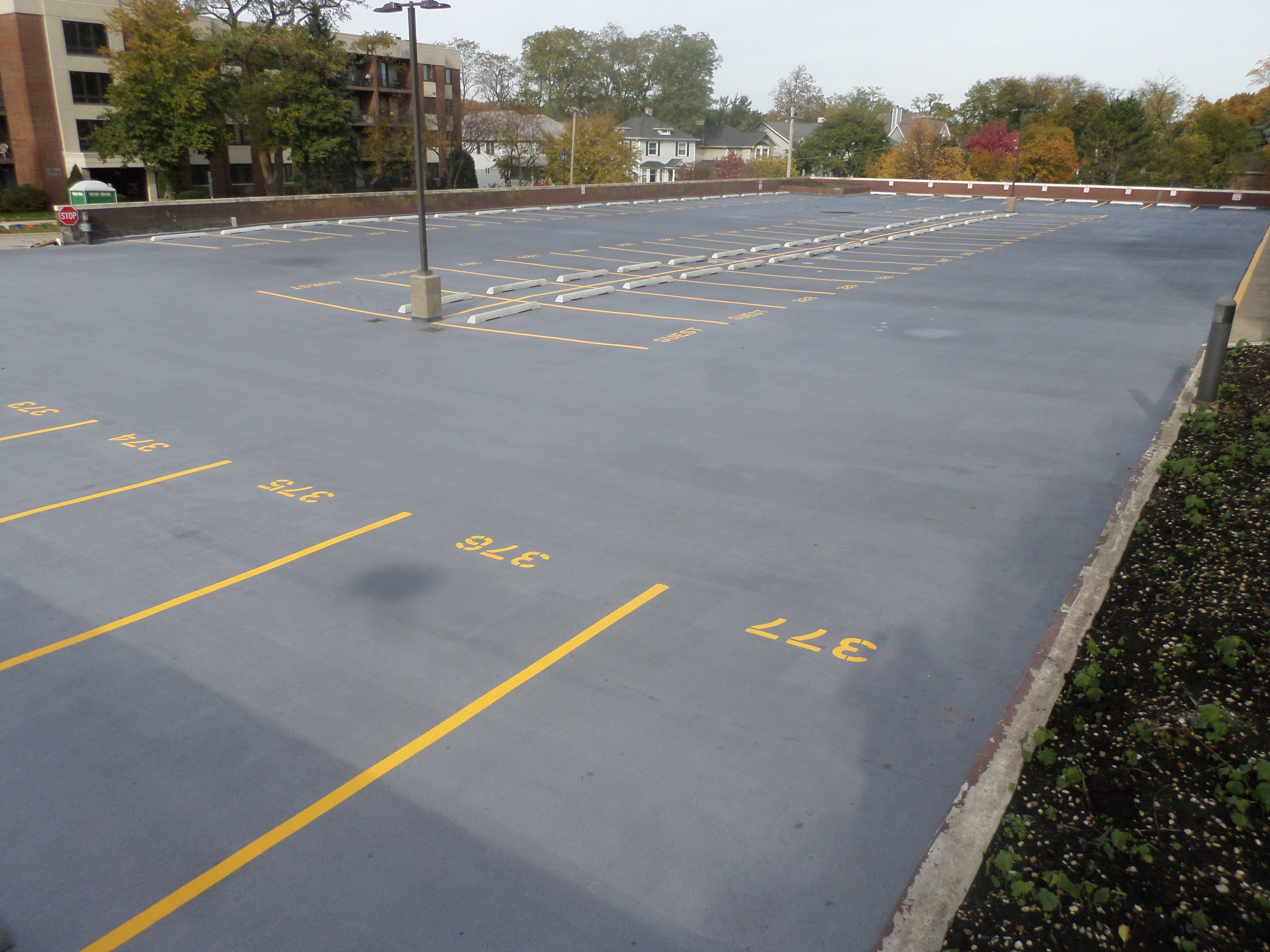

The repair plan included installing a waterproof membrane with new drains inside the planters, installing a waterproofing membrane on the parking deck surface, replacement of the expansion joint, concrete crack and spall repairs to the top and bottom of the parking deck, removal of several planters, installing new sealant, and post tension cable repairs.
